SYSTEM WIRING

Wire individual components of your equipment quickly, easily and systematically – whether for automation, or at the interconnection point between control cabinet wiring and a standard interface such as RS-232. As system and control cabinet solutions become more and more complex, this approach saves time and money on planning, installation and commissioning. Take advantage of the diverse product portfolio of universal interface modules and system wiring, as well as controller-specific components. Here you will already find a large number of manufacturers for whose control systems WAGO system cables offers convenient wiring.

The Benefits for You:
  • ▪Reliable, fault-free connection of individual components
  • ▪Pre-assembled system cables permit fast wiring
  • ▪Marking options for clear identification

OUR SYSTEM WIRING PRODUCTS

Controller-Specific Interface Modules and System Cables

On the following pages, you’ll find all the information on our controller-specific interface modules and systems cables. With our solutions, you can connect your preferred automation system quickly and easily. We offer solutions for all major manufacturers of automation systems.

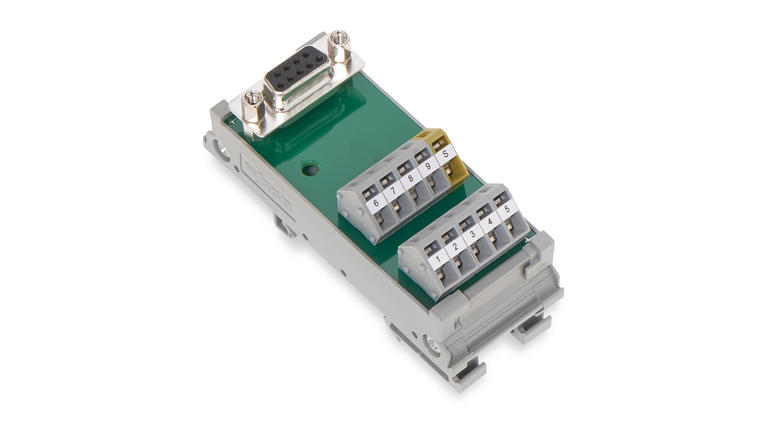

Universal Interface Modules

WAGO’s interface modules offer you safe and maintenance-free connections for flexible signal wiring applications. They connect electronics to electrical systems at the control level and handle signal transmission and distribution on the control and field levels (system, machine). The control signals from pre-assembled plug-in connections, such as RJ45 and RS-232, as well as common ribbon cables, are applied to terminal block connections.

  • ▪Economical, time-saving configuration and calculation thanks to a reduction in the wiring modules needed
  • ▪Fast wiring, commissioning and troubleshooting thanks to clearly organized wiring and pole marking
  • ▪Safe, maintenance-free connection of signal lines using reliable terminal blocks equipped with CAGE CLAMP® Spring Pressure Connection Technology
  • ▪Space-saving, high-density control cabinet wiring

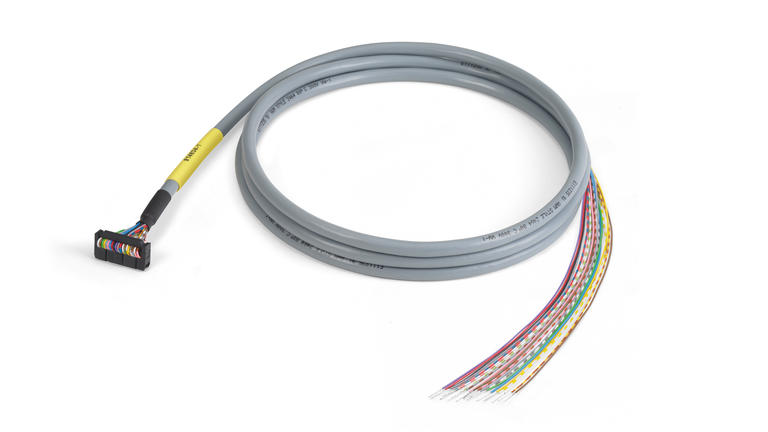

Universal System Cables

WAGO’s system wiring for universal components supports you with quick installation, mounting and maintenance. Choose the right interface from our broad selection of products, whether RJ45, RS-232 or other universal connection components.

  • ▪Fast, simple connection between connection levels (sensors and actuators) and controllers
  • ▪For greater flexibility in system planning, also available with open cable ends
  • ▪Time savings through pre-assembled interface cables

New Product

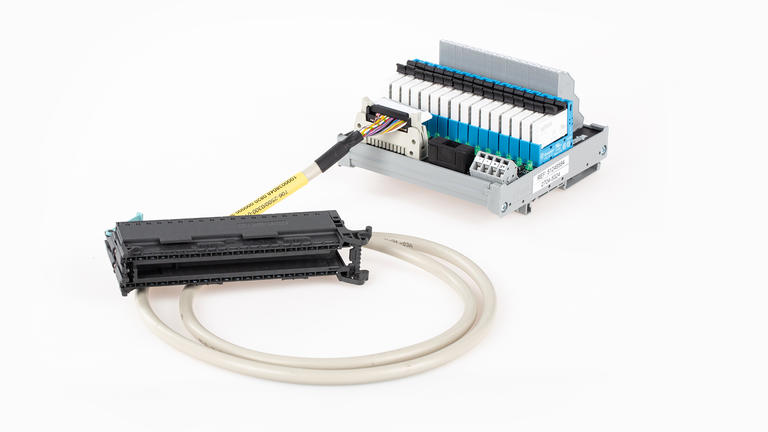

A Great Combination: WAGO System Cables and PLC Interface Modules

An addition to the portfolio allows connection to more controllers.

The expansion of the portfolio with further PLC interface modules and a large number of system cables now allows even more programmable logic controllers (PLCs) to be supported. This is an addition to the internationally available portfolio of system cabling. Besides the WAGO 750/753 Series controllers and the Siemens S7-300 and S7-1500, which are already supported, there are now also solutions for the Siemens S7-400, GE Fanuc 90-30 and RX3i, Schneider Twido, Modicon M2xx, TSX37, TSX57, M340 and Quantum, Rockwell CompactLogix, ControlLogix and Omron CJ1. Simple Signal Connection to the PLC The pre-assembled system cables allow quick, error-free pre-wiring. High-density wiring and direct connection of the signals to the interface modules also free up significant space in the control cabinet. This portfolio expansion allows users to benefit from secure, error-free connection of PLC interface modules.

The Benefits for You:
  • ▪Support for even more controllers
  • ▪Quick, error-free pre-wiring
  • ▪Easy relocation of the connection level

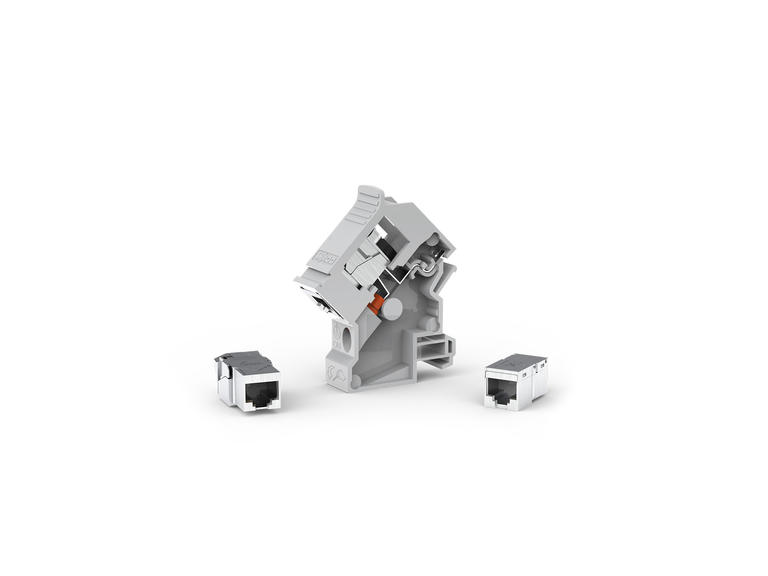

New Interface and Coupler Module

30 Percent Less Space Required with Integrated Shielding

The new RJ-45 Cat 6A interface module and the RJ-45 Cat 6A coupler module are ideal for 10 Gigabit Ethernet (10GBASE-T) and high-speed applications up to 500 MHz. They are also PoE and PoE+ compatible and take up 30 % less space than the previous WAGO solution. These two new modules supplement the existing WAGO interface modules (289 Series) and offer advantages for meeting typical in-the-field challenges, such as wiring with tool-free connection technology. With the coupler module, you can now also directly link two field connectors, opening up interconnection points for networks with ready-made cables. The modules also each offer an integrated shielding option, which can be disabled on the front. Both variants meet the Cat 6A ISO component specifications.

The Benefits for You:
  • ▪Quick and easy extension of existing cables
  • ▪Requires 30 % less space than the previous WAGO solution
  • ▪For Cat. 6 A applications
  • ▪With TIA-568A/B wiring, only one more item is necessary in order for both wiring diagrams to be used
  • ▪Integrated shielding option with front-side deactivation
