FASTER CONNECTION: PLUGGABLE CONNECTORS

The Pluggable Solution for Your Application

The right solution for every application: Whether on the printed circuit board, in the control cabinet or for lighting connection, WAGO's pluggable connectors quickly and easily connect to the widest variety of applications.

Your benefits:

▪Comprehensive product range for any application
▪Conductors are always securely clamped via spring pressure connection technology
▪Push-in CAGE CLAMP® termination of both solid and ferruled conductors
▪Guaranteed protection against mismating through individual coding

Pluggable Connectors for Every Task

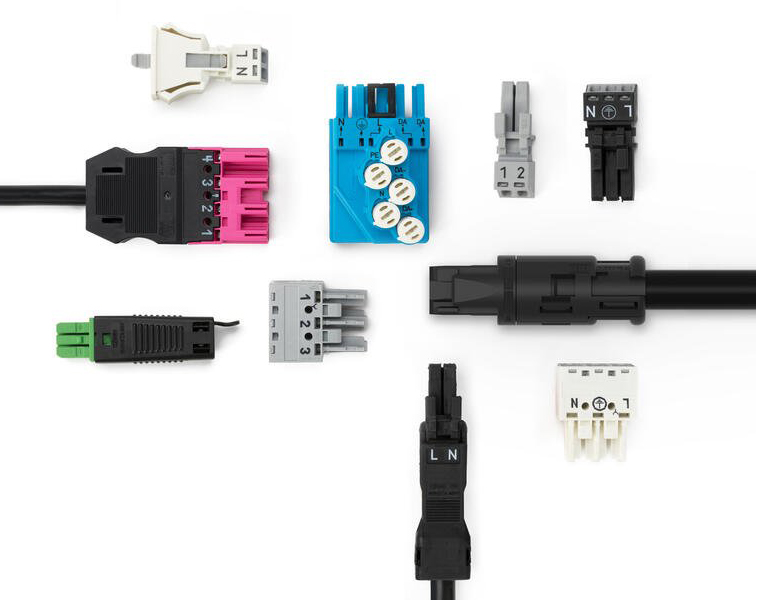

Pluggable Installation Connectors

The WINSTA® Pluggable Installation Connection System finds a home anywhere installation requirements repeat or are planned on a grid, e.g., installing grid lighting or flush-mount lighting. Thanks to this pre-assembled connection system, assembly times and installation errors on the construction site are both reduced.

Advantages:

▪On-schedule completion within the shortest time via pre-assembled cables and pluggable connectors
▪Guaranteed protection against mismating through mechanical and color coding options
▪Simple troubleshooting and quick replacement of pluggable connected loads

Pluggable PCB Connectors

Our pluggable connectors for PCBs provide a universal pluggable connector system for your devices and meet all requirements for consistent, end-to-end system wiring for conductor cross sections from 0.08 to 10 mm2 (28–8 AWG). You benefit from our diverse product lines, since you can always find the right solution for your application.

▪A wide range of applications thanks to: Pluggable PCB connectors, panel feedthrough connectors, flying connections for different mounting types and pluggable connectors for rail-mount terminal blocks
▪Push-in CAGE CLAMP® termination of both solid conductors and fine-stranded conductors with ferrules
▪Custom coding options
▪Efficient test options
▪With a clamping point that can be opened from two directions, the MULTI CONNECTION SYSTEM (MCS) greatly simplifies pre-assembling cables and wiring mated connectors.

picoMAX®: The Pluggable Connection System

One Cr-Ni steel spring, double the contact force applied: This principle makes picoMAX® connectors up to 30 % more compact than other connection systems.

The Benefits for You:

▪Compact design: Reduces space by up to 30 %
▪Radically simplified contact system
▪The special design, innovative spring pressure connection technology and new insulation material guarantee absolute contact reliability – even at higher surrounding air temperatures
▪Exceptionally high vibration resistance of up to 20g for wire-to-board connections, thanks to integrated locking latches and a female connector that’s almost fully enshrouded in the male header.
▪Efficient testing of the connectors via test slot parallel to connector entry

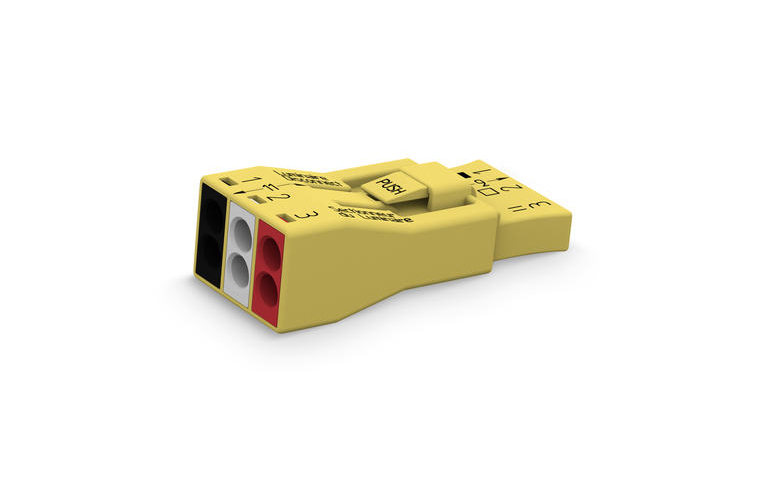

Luminaire Disconnect Connectors

WAGO’s range of connectors for lighting and electrical equipment includes pluggable connector systems with phase selection for fluorescent lighting fixtures, as well as luminaire disconnect connectors for internal wiring. WAGO’s 267 and 277 Series Pluggable Connectors for quick-mount light band systems offer a modular platform for simple lighting solutions tailored to the specific requirements – even when the application requirements change.

Benefits:

▪WAGO’s 873 Series Luminaire Disconnect Connectors are fully protected against accidental contact.
▪This makes them the ideal solution for pluggable ballast connecting cable installations in the USA and Canada.

Pluggable Rail-Mount Terminal Blocks

Enjoy the advantages of the X-COM®-SYSTEM with mismating protection for your switchgear and control applications. Our innovative system consists of DIN-rail carrier terminal blocks, male headers and female connectors for different mounting types and male headers with solder pins.
