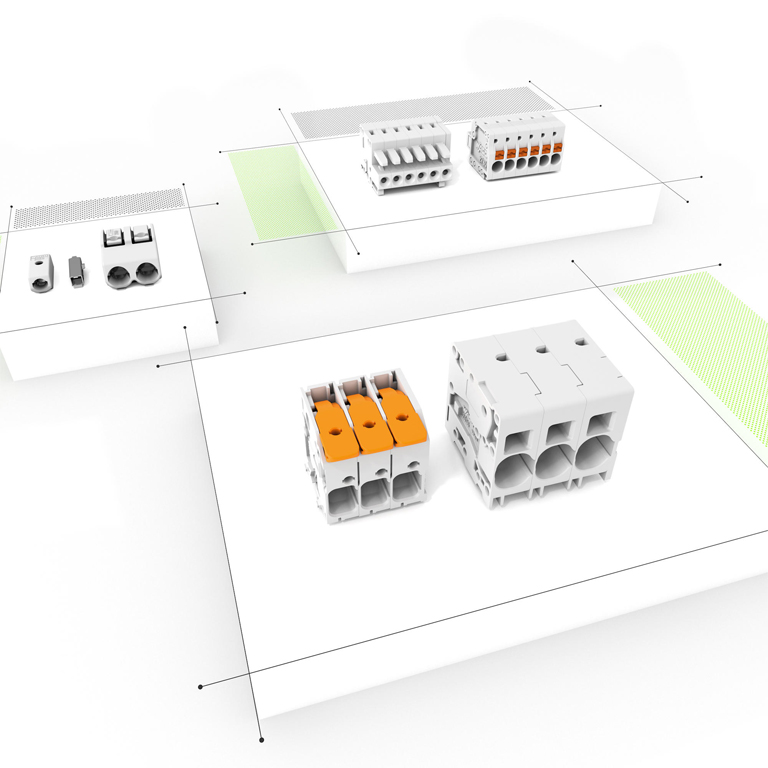

PLUGGABLE PCB CONNECTORS AND PCB TERMINAL BLOCKS

The Pluggable Solution for Your Application

Different applications demand different solutions. WAGO offers the widest range of PCB terminal blocks and pluggable connectors for these. For example, the various spring pressure connection technologies allow you to meet your challenges in drive and controller technology or lighting industry quite easily.

Your benefits:
  • ▪Highly diverse variants
  • ▪Easy and safe use
  • ▪Permanent, secure conductor termination via spring pressure connection technology
  • ▪Push-in CAGE CLAMP® and PUSH-WIRE® variants for fast, time-saving termination of solid and ferruled conductors
  • ▪Seamless integration into your manufacturing process with products for wave/manual (THT) and reflow soldering (THR/SMT)

Our PCB Connection Solutions

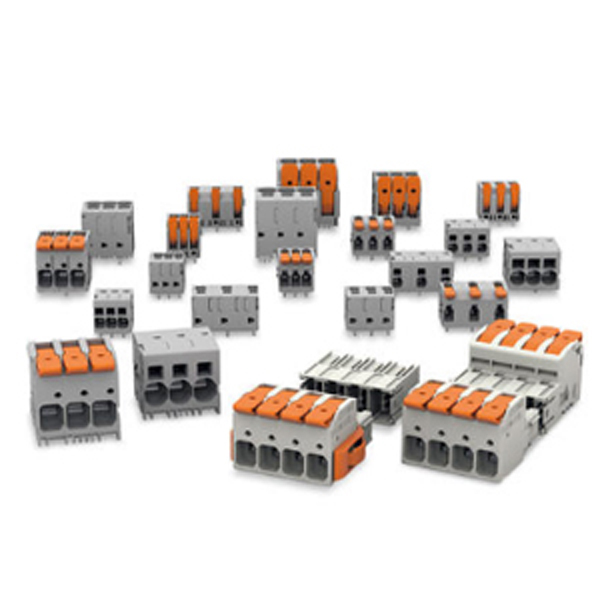

PCB Terminal Blocks and Pluggable PCB Connectors for Power Electronics

For power electronics, WAGO’s range contains two families of PCB terminal blocks and a pluggable connector system for cross-sections up to 25 mm2 (4 AWG) and nominal current up to 76 A. These compact, high-performance PCB terminal blocks – with or without levers – are easy to use and also offer maximum wiring flexibility. The MCS MAXI 16 Pluggable Connector System is also the world’s first pluggable connector with a lever for power electronics.

The Benefits for You:
  • ▪Comprehensive product range
  • ▪Easy conductor termination via Push-in CAGE CLAMP® connection technology
  • ▪Wider conductor range and higher current carrying capacity
  • ▪Save money and space by using compact terminal blocks for large cross-sections and high currents
  • ▪Conductor connection both parallel and perpendicular to the PCB
  • ▪Testing both parallel and perpendicular to conductor entry
  • ▪Wide range of uses in various industries and applications

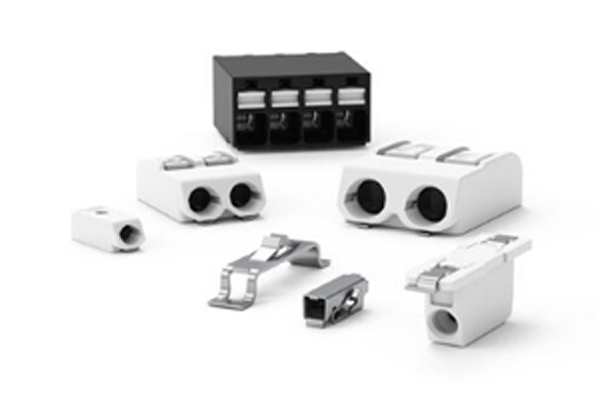

SMD PCB Terminal Blocks

WAGO’s line of SMD PCB terminal blocks is the ideal solution both for your LED applications and for industrial applications. You benefit from several industry-leading advantages, such as a compact and user-friendly design.

The Benefits for You:
  • ▪Push-in termination of solid conductors
  • ▪A low profile and white housing minimize on-board shadowing
  • ▪Tape-and-reel packaging for full integration into automated assembly

PCB Terminal Blocks

WAGO offers a comprehensive range of PCB terminal blocks for conductors ranging from 0.08 to 16 mm2 (28–6 AWG) to connect PCBs to your device environment. With metric or inch pin spacing from 2.5 to 20 mm (0.098–0.787 inch), WAGO has the right solution for your application.

The Benefits for You:
  • ▪Simple, secure connection of solid conductors with Push-in CAGE CLAMP®
  • ▪Wide selection of PCB terminal blocks with different conductor entry directions and actuation types for every need
  • ▪Custom color combinations for clear connection assignment
  • ▪Simple integration into your manufacturing process with products for various soldering processes
  • ▪Variants available for through-panel connection

Pluggable PCB Connectors

Always find the right solution for your application with WAGO’s wide range of pluggable connectors. WAGO’s pluggable PCB connectors are available for conductors ranging from 0.08 to 10 mm2 (28–8 AWG), meeting all requirements for consistent, end-to-end system wiring.

The Benefits for You:
  • ▪Pluggable PCB connection systems perfectly tailored to various requirements and application areas
  • ▪Wide range of connectors within these systems for every conceivable application
  • ▪Fast, vibration-proof and maintenance-free spring pressure connection technology
  • ▪Pin spacing from 2.5 to 7.62 mm (0.098–0.3 inch) with a current carrying capacity up to 41 A
  • ▪Pluggable PCB connectors are available for individual solder pins and solder pin strips
  • ▪Through-panel connector variants available

picoMAX®: The Pluggable Connection System

One Cr-Ni steel spring, double the contact force applied: This principle makes picoMAX® connectors up to 30 % more compact than other connection systems.

The Benefits for You:
  • ▪Compact design: Reduces space by up to 30 %
  • ▪Radically simplified contact system
  • ▪The special design, innovative spring pressure connection technology and new insulation material guarantee absolute contact reliability – even at higher surrounding air temperatures
  • ▪Exceptionally high vibration resistance of up to 20g for wire-to-board connections, thanks to integrated locking latches and a female connector that’s almost fully enshrouded in the male header.
  • ▪Efficient testing of the connectors via test slot parallel to connector entry
