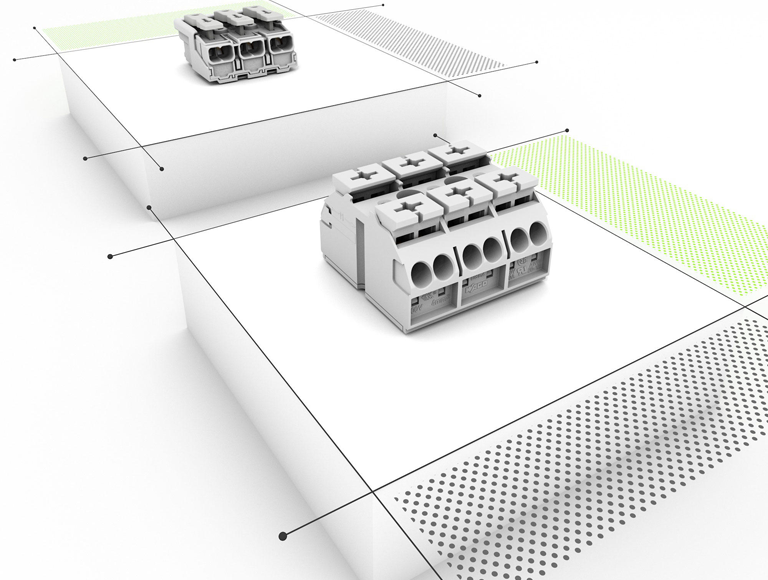

FOR WORLDWIDE USE: FIELD-WIRING TERMINAL BLOCKS

Whether Europe, the USA or Asia, WAGO's Field-Wiring Terminal Blocks fulfill country-specific requirements for secure, safe and simple device connection around the world.

Your benefits:
  • ▪Comprehensive range of field-wiring terminal blocks
  • ▪Wide conductor range: 0.5 … 4 mm2 (20–12 AWG)
  • ▪Terminate solid, stranded and fine-stranded conductors
  • ▪Support various mounting options

Our products from the field of power supply terminals

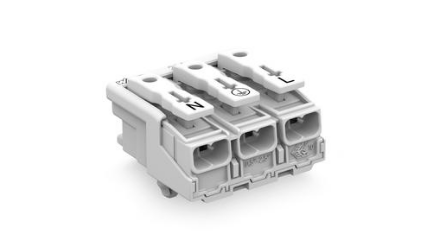

294 Series

WAGO's 294 Series accommodates all conductor types up to 2.5 mm2 (12 AWG) and is ideal for heating, air conditioning and pump systems. The specialty Linect® Field-Wiring Terminal Block is ideally suited for universal lighting connections.

Advantages:
  • ▪Max. conductor size: 2.5 mm2 (12 AWG)
  • ▪For solid, stranded and fine-stranded conductors
  • ▪Push-buttons: single side
  • ▪PSE-Jet certified

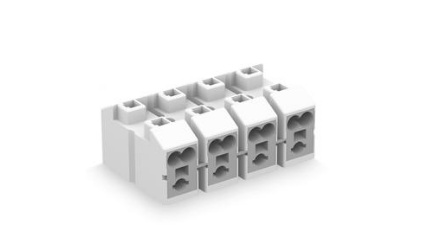

272 Series

WAGO's 272 Series is especially suited for connecting solid conductors up to 2.5 mm2 (12 AWG).

Advantages:
  • ▪Max. conductor size: 2.5 mm2 (12 AWG)
  • ▪For solid conductors
  • ▪Push-buttons: single side, on both sides and without push-buttons
  • ▪UL certified

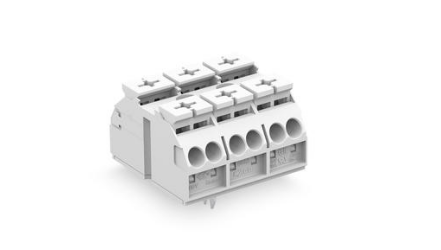

862 Series

WAGO's 862 Series is ideal for connecting up to four conductors sized 0.5 to 4 mm2 (20–12 AWG) per potential.

Advantages:
  • ▪Max. conductor size: 4 mm2 (12 AWG)
  • ▪For solid, stranded and fine-stranded conductors
  • ▪Push-buttons: on both sides
  • ▪PSE-Jet certified
  • ▪UL certified
