HVLS Fans

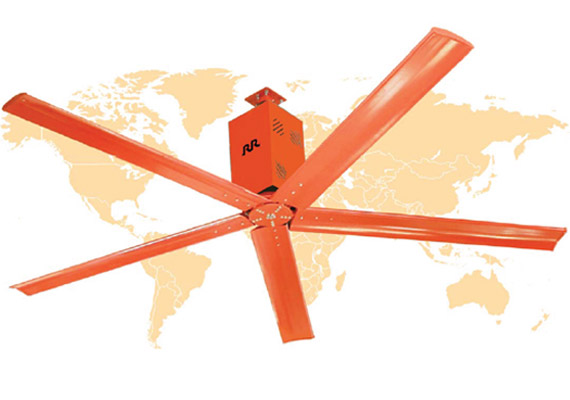

A High Volume Low Speed (HVLS) fan is an air circulating device of large diameter. It is available in various sizes between 8/12/16/20/24 feet. HVLS fans are predominately ceiling-mounted although they can be mounted on the pole too. These fans move slowly and distribute large amounts of air at a low rotational speed.
Eurolec Energy provides HVLS fans for both domestic and industrial applications.
- 8/12/16/20/24 feet HVLS Fan
- Fan control VFD Panel
- Large Diameter
- Ceiling & Pole mounted
- Slowly Moving Fans
- Distribute large amount of air
- Domestic & Industrial Applications
- Make : RR Electric
- Model No. : HL08GV
- Diameter : 8 feet
- Blade Material : Extruded Aluminium Alloy 6063 T
- Number of Blades : 5
- Hanging Weight : 100 kg
- Gear Box : Inline Helical
- Motor : 1.0 HP/0.75kW
- Operational Speed : 110RPM
- Efficiency @ 100% Speed : 1,30,000 CFM
- Maximum Effective Area : 4,000 sq.ft.
- Floor to Ceiling Height : 13 to 15 feet
- HVLS Fan fixing distance : 3.5 feet
- Make : RR Electric
- Model No. : HL12GV
- Diameter : 12 feet
- Blade Material : Extruded Aluminium Alloy 6063 T
- Number of Blades : 5
- Hanging Weight : 110 kg
- Gear Box : Inline Helical
- Motor : 1.0 HP/0.75kW
- Operational Speed : 95RPM
- Efficiency @ 100% Speed : 1,75,000 CFM
- Maximum Effective Area : 7,000 sq.ft.
- Floor to Ceiling Height : 15 to 18 feet
- HVLS Fan fixing distance : 3.5 feet
- Make : RR Electric
- Model No. : HL16GV
- Diameter : 16 feet
- Blade Material : Extruded Aluminium Alloy 6063 T
- Number of Blades : 5
- Hanging Weight : 140 kg
- Gear Box : Inline Helical
- Motor : 1.5 HP/1.10kW
- Operational Speed : 80RPM
- Efficiency @ 100% Speed : 2,25,000 CFM
- Maximum Effective Area : 10,000 sq.ft.
- Floor to Ceiling Height : 18 to 22 feet
- HVLS Fan fixing distance : 3.5 feet
- Make : RR Electric
- Model No. : HL20GV
- Diameter : 20 feet
- Blade Material : Extruded Aluminium Alloy 6063 T
- Number of Blades : 5
- Hanging Weight : 160 kg
- Gear Box : Inline Helical
- Motor : 2.0 HP/1.50kW
- Operational Speed : 65RPM
- Efficiency @ 100% Speed : 3,00,000 CFM
- Maximum Effective Area : 15,000 sq.ft.
- Floor to Ceiling Height : 22 to 27 feet
- HVLS Fan fixing distance : 3.5 feet
- Make : RR Electric
- Model No. : HL24GV
- Diameter : 24 feet
- Blade Material : Extruded Aluminium Alloy 6063 T
- Number of Blades : 5
- Hanging Weight : 175 kg
- Gear Box : Inline Helical
- Motor : 2.0 HP/1.50kW
- Operational Speed : 55RPM
- Efficiency @ 100% Speed : 3,75,000 CFM
- Maximum Effective Area : 20,000 sq.ft.
- Floor to Ceiling Height : 27 feet and above
- HVLS Fan fixing distance : 3.5 feet
- Make : RR Electric
- Variable Frequency Deive (VFD) of a reputed make with full variable speed operation
