Application
This range includes trunkings with 2 m bars in three dimensions: 60x40 mm, 80x60 mm and 100x60 mm. The trunkings feature an IP40 protection degree. The range of products also includes some accessories (flat and internal corners, wall fi ttings, etc.) all of these can be snap-on mounted in a simple and quick way.
Mounting of Mini Trunking
- Make : OBO Bettermann
- Remove the protective film.
- Stick the trunking to a dust-free, adherent substrate.
- Make : OBO Bettermann

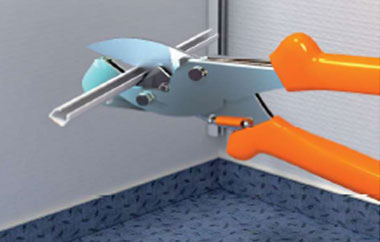

- The OBO shears can be used to create an ex-act straight cut for the WDK trunking.
- The shears can be used for trunking sizes of up to 25 * 45 mm.
- Make : OBO Bettermann

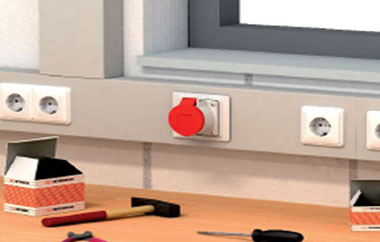

- Together with accessory mounting boxes, WDK cable trunking of 60 mm trunking height can be used as device installation trunking.
- Make : OBO Bettermann

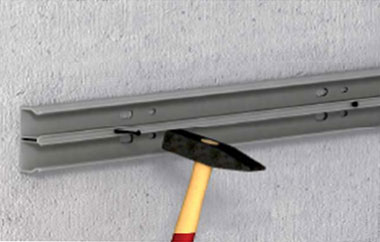

- The nail strip means that WDK trunking can be mounted with steel nail.
- At the same time, it prevents the nail damage to the cables.
- Of course, the nail strip can also be used as a separating retainer for rounting different voltage levels.
- Make : OBO Bettermann
- The cover clip is locked into the cover contour.
- To insert the cables, move it forward through 30°.
- The clip stabilises the WDK trunking and keeps the cables in the trunking.
Mounting Internal Corner Hood Fitting
- Make : OBO Bettermann

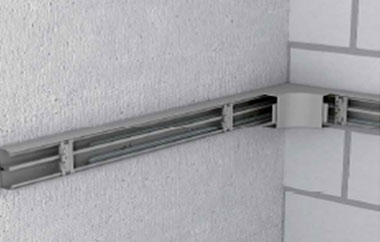

- The hood fitting is placed over the mounted WDK trunking and locks into the cover contour.
Mounting of External Corner Hood Fitting
- Make : OBO Bettermann

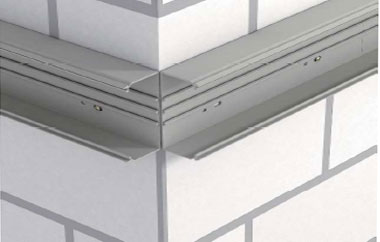

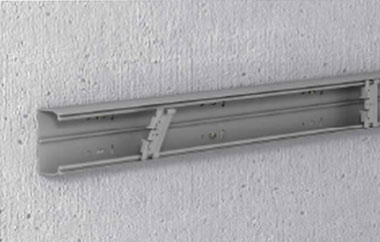

- The bases of the WDK trunking of are mounted on the wall up to the corner.
Mounting of External Corner Hood Fitting
- Make : OBO Bettermann

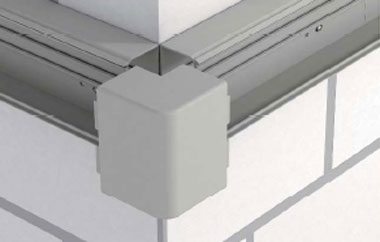

- After the cables have been routed, the external cable hood fitting is placed on the bases.

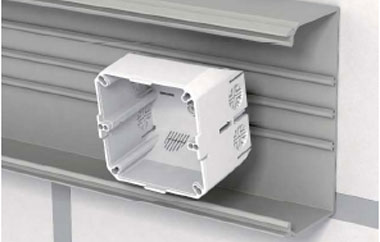

Mounting of Accessory Mounting Box
- Make : OBO Bettermann
- The accessory mounting box is locked onto the floor connectors.
Mounting of Accessory Mounting Box
- Make : OBO Bettermann

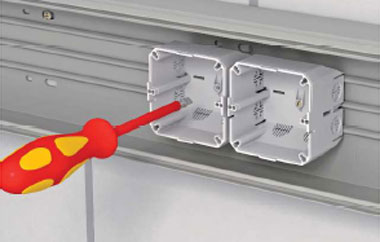

- Then the accessory mounting box is fixed to the WDK trunking using the bolt located in the base.
Mounting with Nail Device
- Make : OBO Bettermann

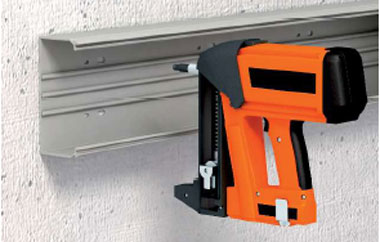

- Mounting of the cable trunking is fast and efficient with a Split nail device.

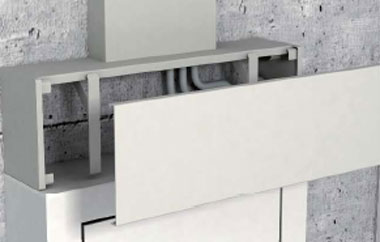

- Make : OBO Bettermann
- The universal trunking hides all the cables inserted in distributors and contour cabinets.
- Make : OBO Bettermann

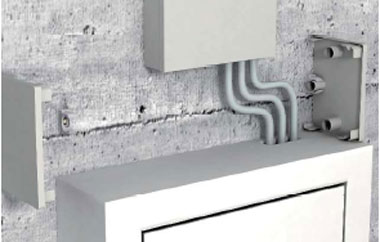

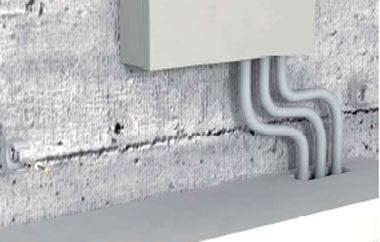

- The clips (OBO Quick Clip Pg16) are mounted using knock-in anchors on the left and right of the distributor cabinets.
- They are contained in the scope of delivery.
- Make : OBO Bettermann

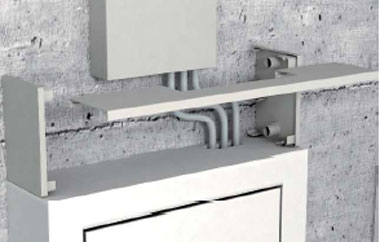

- The end pieces are fastened by locking them in the clips.
- Make : OBO Bettermann

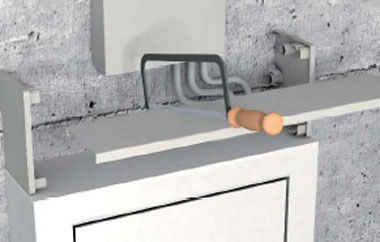

- The covers are cut to the appropriate length using a standard coping saw.
- Make : OBO Bettermann
- Simply lock the cover in the end pieces.
- Make : OBO Bettermann
- Attach the front cover to the cover clips.
- Make : OBO Bettermann

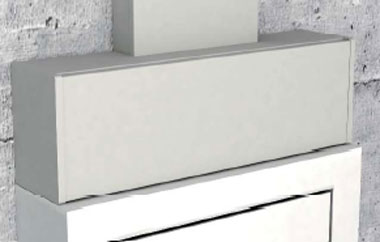

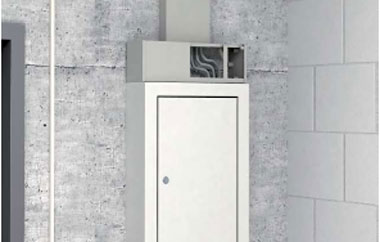

- The universal trunking allow tidy laying, even if a lot of cables need to be hidden.
